Ceramic membrane

Ceramic membrane

According to the size of mean pore, ceramic membranes are generally divided into two categories: micro-filtration membrane (MF) and ultra-filtration membrane (UF).

The mean pore size of CRM-MF membrane elements is 50nm-10000nm, and the most commonly used are 1200nm, 800nm, 500nm, 200nm, 100nm; The mean pore size of CRM-UF membranes is 50nm, 30nm, 10nm, 8nm, 5nm.

Membrane elements can be made in small size installed in individual modules of 0.1 square meters surface area, which are available for laboratory devices, ensuring the ability to evaluate and scale up processes to any size.
Get a Quote

Overview

VOCEE Ceramic membrane

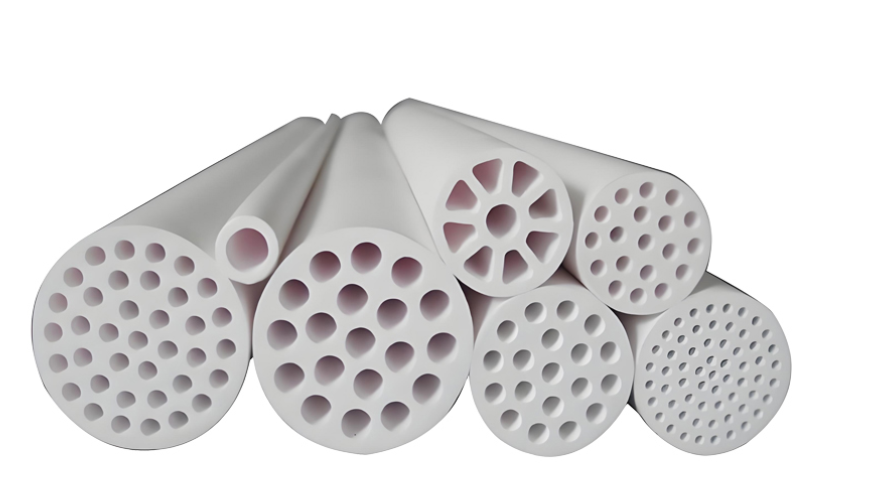

Ceramic membranes are made from alumina oxide (Al2O3), titanium oxide (TiO2), zirconium oxide (ZrO2) and other metal oxides. Generally, CRM ceramic membranes are tubular, open-ended, cross flow devices.

Alumina oxide membranes are available for microfiltration and ultrafiltration as single-channel or multiple- channel elements with channel diameters between 2 and 16mm.


Ceramic Membrane Characteristics

1.Long and reliable lifetime;

2.Excellent solvent stability;

3.High and stable filtration flux;

4.Corrosion & abrasion resistant;

5.High thermal stability and steam disinfected;

6.Good regeneration performance after fouling;

7.Narrow mean pore-size distribution, down to nanometer;

8.Excellent resistance to strong acid/alkaline and oxidation chemicals.

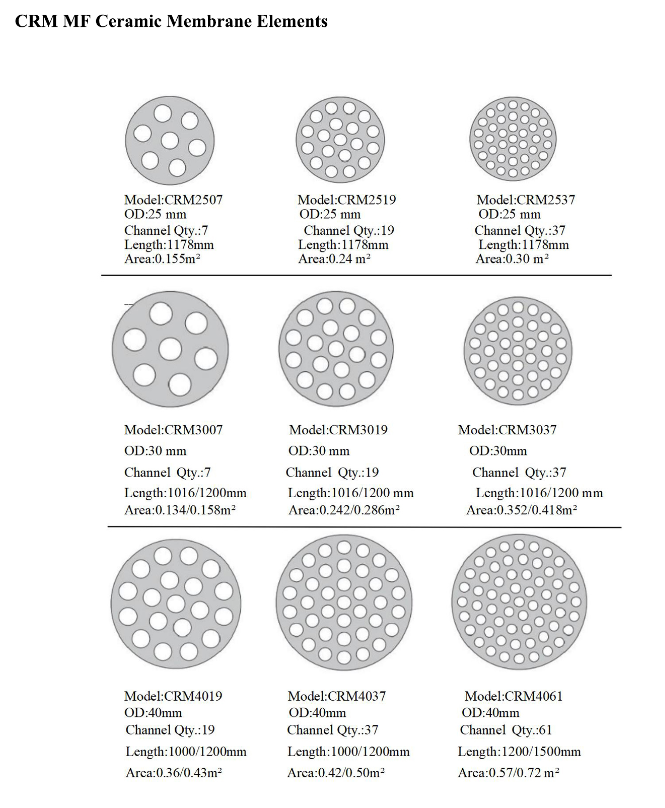

CRM Technical Data
Parameter & Model

Model CRM1001 CRM2519 CRM3019 CRM3037 CRM4019 CRM4037
OD 10mm 25mm 30mm 30mm 40mm 40mm
Channel Qty 1 19 19 37 19 37
Channel ID 7.0mm 3.5mm 4.0mm 3.0mm 7.0mm 3.6mm
Length 1016mm 1178mm 1016mm 1200mm 1000mm 1000mm
Area 0.02m2 0.25m2 0.24m2 0.42m2 0.36m2 0.42m
Pore Size CRM-MF: 1.2μm, 0.8μm,0.2μm,0.1μm
CRM-UF:50nm,30nm,10nm,8nm,5nm
Material A12O3,ZrO2,TiO2
PH pH 1-14
Pressure Inner Pressure <0.8MPa, Outside pressure <1.0MPa
Porosity 35-40%
Temperature <150℃

Note:
* Membrane Length could be customized from 500mm to 1200mm.
*VOCEE has other type of membranes for your option, consult us for more details.
* CRM ceramic membrane can be working under high temperature, but sudden thermo shock should be avoided.
* VOCEE can make an end grinding due to different kind of housing design.
* For membrane replacement, length/pore size/configuration should be confirmed.
